ADO Air Carbon | The Lightest Carbon Folding Electric Bike

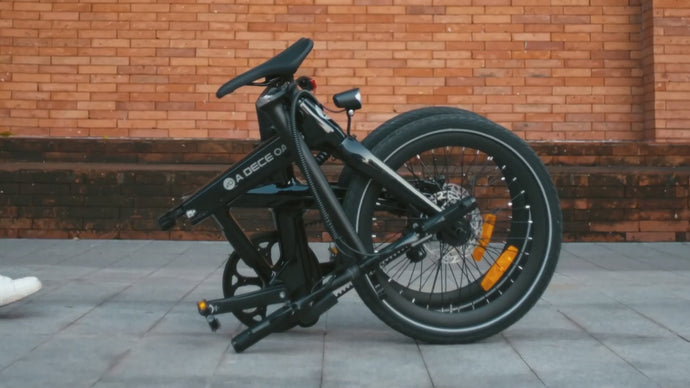

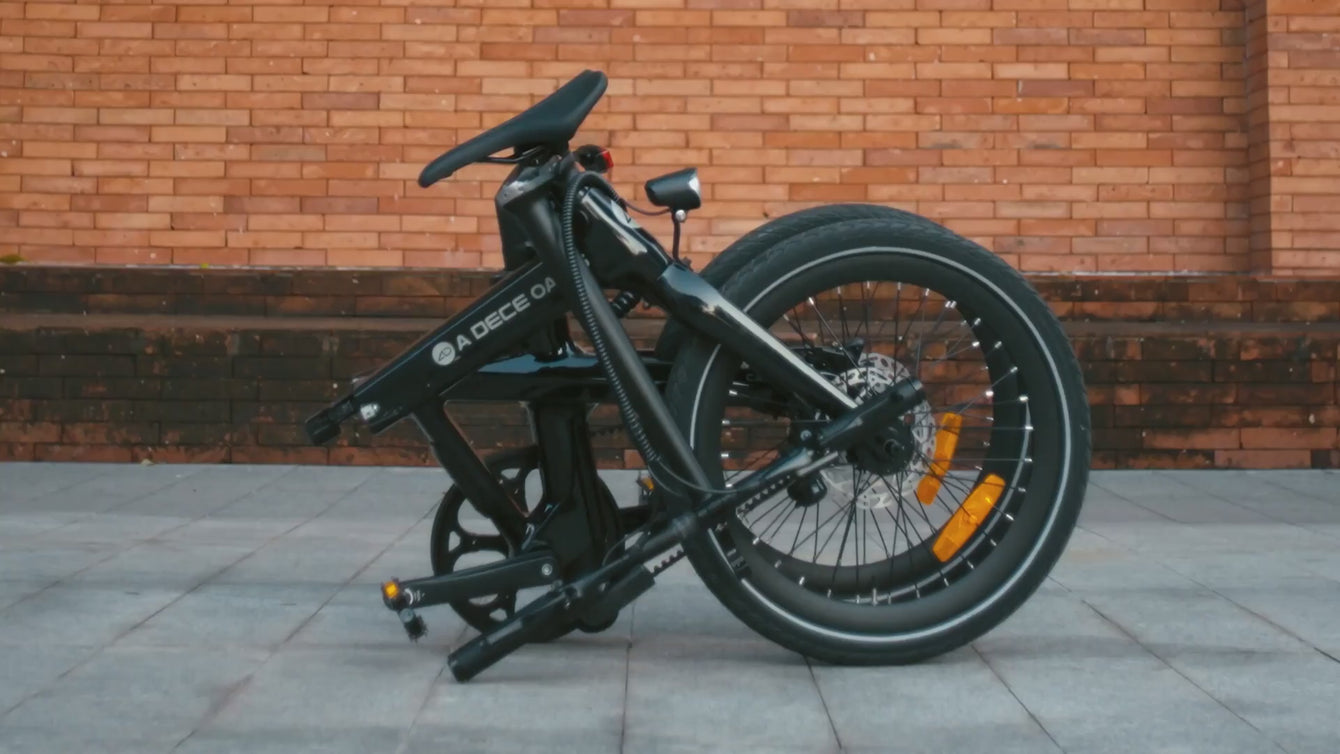

Ultra-Light. Effortlessly Portable

Crafted from next-generation LightCore carbon fiber, the Air Carbon redefines what lightness feels like — weighing just 14.5 kg yet built with uncompromising strength and performance. Fold it in 15 seconds, lift it with one hand, and move through the city with effortless freedom.

Powerful Performance

With strong motor assistance, the ADO Air easily conquers steep 20° slopes and offers up to 100 km of assisted range. It’s always ready to take you wherever you want to go — enjoy every journey with your family.

IntelliTrack GPS — Smart Protection for Every Ride

The ADO IntelliTrack GPS Security System keeps your bike constantly monitored and its location precisely tracked. Any unexpected movement or impact triggers instant notifications and an automatic fall alert. Ride with confidence — your safety, always seamlessly connected.

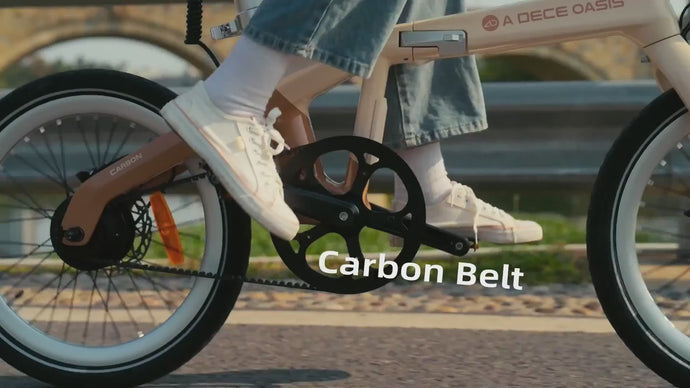

Carbon Belt Drive — No Grease, No Noise, Maintenance-Free

The ADO Carbon Belt Drive offers 98% efficiency, runs 36% lighter than chains, and lasts up to twice as long. No oil, no rust, no noise — just smooth, silent, and effortless riding.

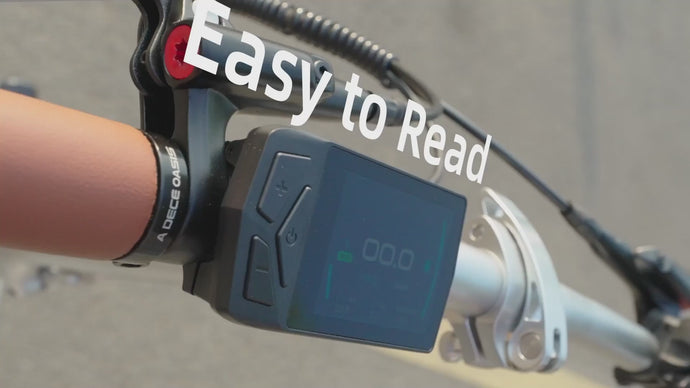

ADO App & 2.4" IPS Sunlight Display—Smart Control, Navigation

The 2.4" color screen features a brilliant IPS sunlight display (IP65-rated) with integrated navigation. Designed with a high-intensity backlight and a wide 180-degree viewing angle, it remains perfectly clear even in direct sunlight. Paired with the ADO Smart App, it delivers a dynamic and connected riding experience.

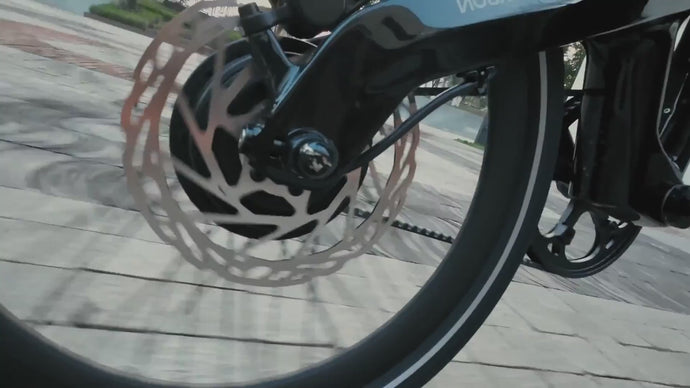

Hydraulic Disc Brakes — Smooth, Confident Riding

Ride with complete confidence on the Air Carbon 20-inch e-bike. Its integrated hydraulic disc brakes deliver effortless, responsive stopping power in any condition, letting you focus on the joy of the ride while enjoying maximum control and safety.

ADO Air Carbon

Details

3-Level Assist Mode with IPS Color Display

Easily switch between assist levels at the touch of a button to handle any terrain.

E-Mark Certified IPX5 Waterproof Light

The 30 LUX front light boasts an IPX5 waterproof rating and complies with E-Mark standards. It ensures clear visibility even in rainy conditions or at night, while its soft light prevents glare for oncoming traffic. Delivering reliable illumination for both commuting and long-distance driving.

Lightweight Carbon Fiber Frame

The lightweight carbon fiber frame ensures both durability and safety.

Hydraulic Brakes – Powerful Braking Force, Superior Stability

Compared to conventional cable brakes, high-performance hydraulic brakes deliver quicker and more consistent stopping power. This enables confident braking even in sudden urban situations or on slippery surfaces.

Battery Anti-Theft Lock

A unique anti-theft design keeps your battery safe and secure.

New Crank Kickstand

We've also added a crank kickstand to our carbon fiber bikes, offering multiple storage options for your convenience.

High-strength aluminium alloy fender & rear rack

Featuring clean, refined lines that provide stable load support. An integrated quick-release system facilitates effortless fitting of original equipment accessories. Whether commuting, shopping or travelling, you can freely adapt your load-carrying approach to suit your needs.

SCHWALBE Puncture-Resistant Tires– the perfect balance of manoeuvrability and stability

The 20x1.75" wheels deliver both handling agility and stability. Whether navigating narrow city streets, tackling daily commutes, or enjoying leisurely rides, you can ride with confidence. Despite its compact frame, the bike offers exceptional stability.

In The Box

Air Carbon E-Bike

Battery Lock

Air Battery

Installation Tool

42V 2A Battery Charger

Pedals

Geometry

SIZE (mm)	One Size
Max. Seat Height	1000
Min. Seat Height	900
Standover Height	650
Seat Tube Length	335
Handlebar Height	1130
Bottom Bracket	175
Front to Center	580
Wheelbase	980
Top Tube Length	500
Total Length	1480

Electronic Spec

Marked Power 250W

Sensor Torque Sensor

Battery 36V / 9.6Ah

APP ADO Smart APP

GPS Anti-Theft GPS

Display Type 2.4" IPS Colorful Display

Motor Type BAFANG Brushless DC Motor

General Spec

Range

100 km max range

Speed

25 km/h

Riding Mode

Dual Mode

Certificates

SGS CE

Frame Material

Carbon Fiber

IP Rating

IPX5 (Display IPX7)

Charging Time

4–6 Hours

Maximum Climbing Angle

20°

Rider Heights

155cm–190cm

Torque

35N.m

Transmission

Single speed

Weight

Net weight: 14+ kg (excluding all accessories)
Full weight: 14.5+ kg (including all accessories)
Permissible Max. Weight: 120 kg

Components Spec

Headlight

E-Mark Headlight

Brakes

Hydraulic disc brakes

Chain Ring

Carbon Belt

Tail Light

Electric Taillight

Tire Size

20*1.75 Inch

FAQ

Is the ADO Air Carbon road legal？

The ADO Air Carbon is 100% legal and complies with EN 15194 CE certificate. According to SGS CE EN15194 and SGS UKCA, ADO Air conforms to the requirements of the Machinery Directive (2006/42/EC), the EMC Directive (2014/30/EU), the Radio Equipment Directive (2014/53/EU), and DIN EN 15194:2017. The ADO Air Carbon battery complies with UN 38.3 lithium-ion battery testing standards.

What kind of rider does ADO Air Carbon suit?

ADO Air Carbon — Designed for Light, Stylish, and Safe Riders

The ADO Air Carbon is an e-bike built for riders who value lightness, style, and safety. It’s especially recommended for:

1. Lightweight riders

The ADO Air Carbon is an ultra-light electric bike made from carbon fiber, weighing only 14.5 kg. It’s the perfect choice for anyone who needs to carry or store their bike easily. Whether you’re taking it up stairs or placing it in the car boot, it’s simple to handle and highly practical.

2. Style-conscious riders

With its clean, modern design, the ADO Air Carbon turns heads wherever it goes — from daily commutes to weekend rides. Its sleek look and premium carbon-fiber frame make it stand out from ordinary e-bikes.

3. Safety-minded riders

The built-in GPS tracking system lets you monitor your bike’s location in real time. When riding in busy urban areas, the GPS feature provides extra peace of mind and effective theft protection.

4. Commuters and leisure cyclists

Ideal for city commuters and weekend explorers alike, the ADO Air Carbon offers a smooth, comfortable ride. Its simplified design — with no gear shifting required — makes operation effortless, so you can focus purely on enjoying the ride.

5. Riders seeking long-distance comfort

The carbon-fiber frame is not only lightweight but also highly shock-resistant. It ensures excellent stability and comfort, even on longer rides, effectively reducing road vibrations and fatigue.

The ADO Air Carbon is the next-generation e-bike for every lifestyle — light, elegant, and practical. Discover how it fits seamlessly into your way of riding.

Does the ADO Air Carbon have an automatic transmission?

The ADO Air Carbon is not equipped with an automatic transmission system, but it combines a lightweight carbon fiber frame with a high-efficiency BAFANG electric drive system to deliver a smooth and comfortable riding experience.

Its easily switchable dual-speed modes allow you to adjust freely according to different speeds and gradients.

Is carbon fibre superior to aluminium or steel?

Compared to traditional aluminium or steel frames, carbon fibre is lighter, sturdier and more corrosion-resistant, making the ADO Air Carbon more portable and delivering outstanding performance and durability across diverse environments.

Charging Method？

We use a removable seatpost battery system, allowing you to charge the battery while it’s installed on the bike or easily remove it for convenient indoor charging.

What Payment Methods Does The Website Support？

Paypal / Visa/ MasterCard / Bancontact / iDEAL / Klarna /Przelewy24/Giropay

Worldwide：Paypal/Visa/MasterCard

Bancontact：Belgium
IDEAL: Netherlands
Giropay: Germany
Klarna：United Kingdom,Germany,Netherlands,Spain,Italy
Przelewy24: Poland

How long is the warranty period?

For bike frame, 5 years warranty; For controllers, motors, batteries, forks, head tubes, handlebars, chargers, pedals, flywheels, chainstays: 12 months warranty. Should you encounter some production related manufacturer’s defect during this period, we will take care of it according to our warranty. For more details, please contact our customer service: support@adoebike.com
